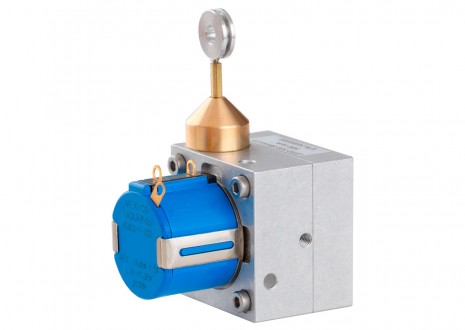

Img PTSC1-face Img PTSC1-dos

Measure ≤ 750m, signal output potentiometer

PTSC

0...150mm to 750mm
  • Measurement range:
    • PTSC1: 150, 200 or 500mm
    • PTSC2: 750mm
  • 1 kΩ or 10 kΩ potentiometric output
  • Linearity ±0.25 % (±0.15 % optional)
  • Simple installation, small footprint
  • Economical

Press testing
Fitting
Insertion force

Axial positioning

Downloads

Data sheets
Wire displacement sensor - PTSC1
FT-PTSC1-FE-0225.pdf
Langues : FR, EN
Wire displacement sensor - PTSC2
FT-PTSC2-FE-0225.pdf
Langues : FR, EN
User Manuals
Cable linear displacement sensors user manual of PTS & PTL series
NU-PTS_PTL-FE-0324.pdf
Langues : FR, EN
Product range leaflets
Displacement Measurement
MT-DISPLACEMENT-E-0325.pdf
Langues : EN
