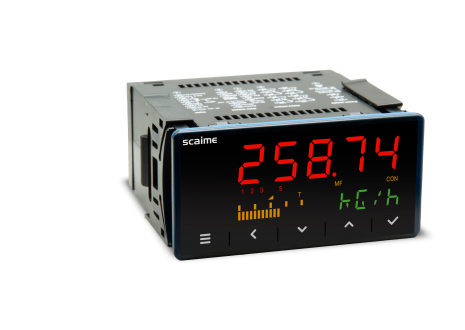

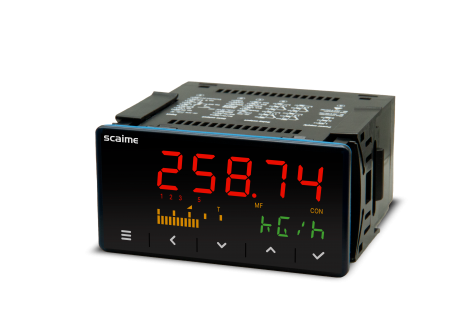

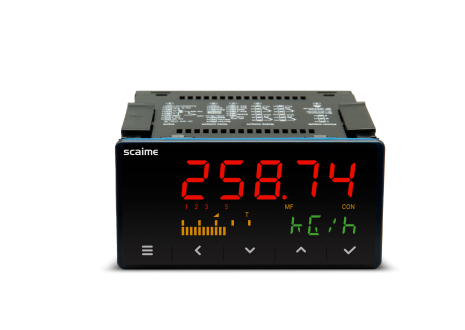

Thanks to its dual LED display, integrated bargraph, touch-sensitive keys with haptic feedback, and intuitive configuration assistant, the IM2-P provides simple and efficient operation.

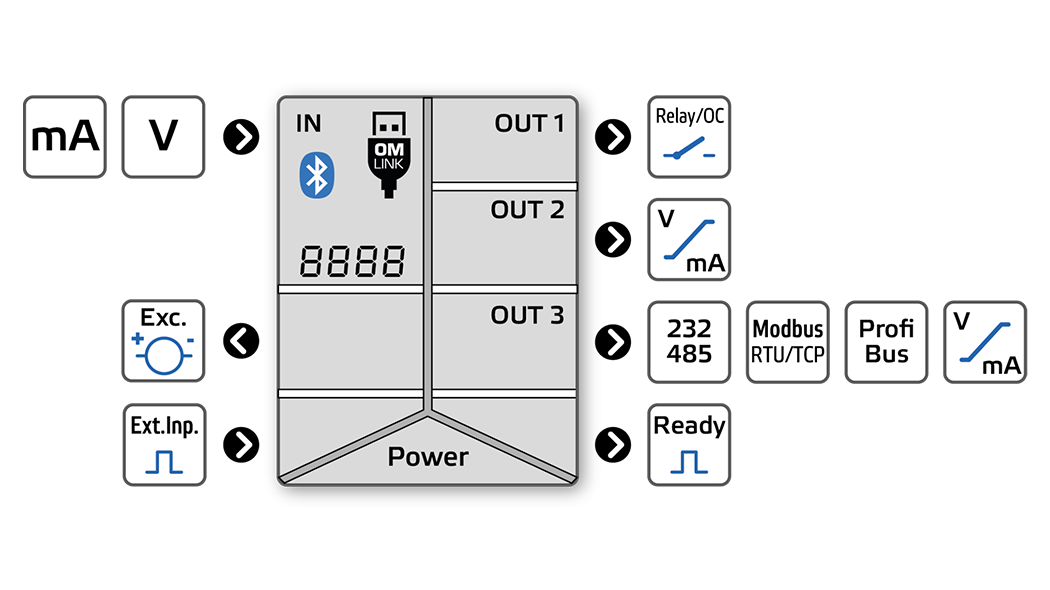

Its modular architecture allows the device functions to be easily adapted to specific application requirements: process monitoring, signal integration, limit control, data transmission and measurement recording.
Key Features
- 6-digit LED digital indicator with secondary display and integrated bargraph
- Universal process monitor and integrator
- High-performance 32-bit processor
- 24-bit A/D converter
- Accuracy up to 0.02 % of full scale
- Sampling frequency up to 1200 measurements/second
- Configurable 3-color main LED display
- Touch-sensitive keys with RGB backlighting and haptic feedback
- Integrated configuration assistant for simplified commissioning
- Integrator function with instantaneous and cumulative value display
- Advanced integrated mathematical functions
- Linearization up to 100 points
- Programmable digital filters
- Teach-In function for simplified calibration
- Internal measurement data recording
- DIN format 96 x 48 mm
- Universal power supply 10...30 V AC/DC or 80...250 V AC/DC
Analog Inputs
- ±5 mA
- 0...5 mA
- ±20 mA
- 0...20 mA
- 4...20 mA
- ±2 V
- ±5 V
- ±10 V
Integrated Functions
- Integrator function including:
- Instantaneous value display
- Cumulative value display
- Configurable time base
- Programmable multiplication and division constants
- Automatic zeroing
- Tare function
- Offset compensation
- Minimum and maximum value storage
- Peak value detection and display
- Configurable digital filtering:
- Arithmetic average
- Moving average
- Exponential filter
- Display rounding
- Multipoint linearization
- Signal simulation for testing purposes
- Event and error logging
- Delayed start-up
- Real-time clock
- Time-based function management
Digital Inputs
- 3 isolated PNP/NPN inputs or dry contacts
- Configurable functions:
- Tare
- Tare reset
- Measurement hold
- Data recording
- Minimum/maximum value reset
- Peak value reset
- Keypad lock
- Customized external commands
Control Outputs
- Relay outputs
- Open collector outputs
- Programmable comparators with:
- Threshold
- Hysteresis
- Activation delay
- Deactivation delay
- Window function
- Dosing function
Analog Outputs
- 0...2 V
- 0...5 V
- 0...10 V
- ±10 V
- 0...5 mA
- 0...20 mA
- 4...20 mA
Communication Interfaces
- ASCII
- Modbus RTU
- Modbus TCP/IP
