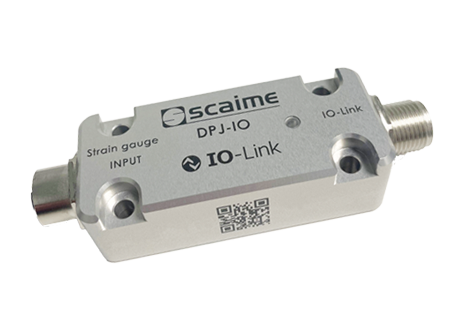

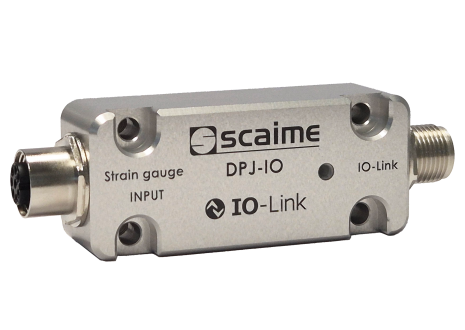

DPJ-IO

The DPJ-IO is a new-generation conditioner for strain gauge bridge sensors, designed for weighing, force, torque, and pressure applications.

It uses IO-Link technology for reliable and intelligent digital communication.

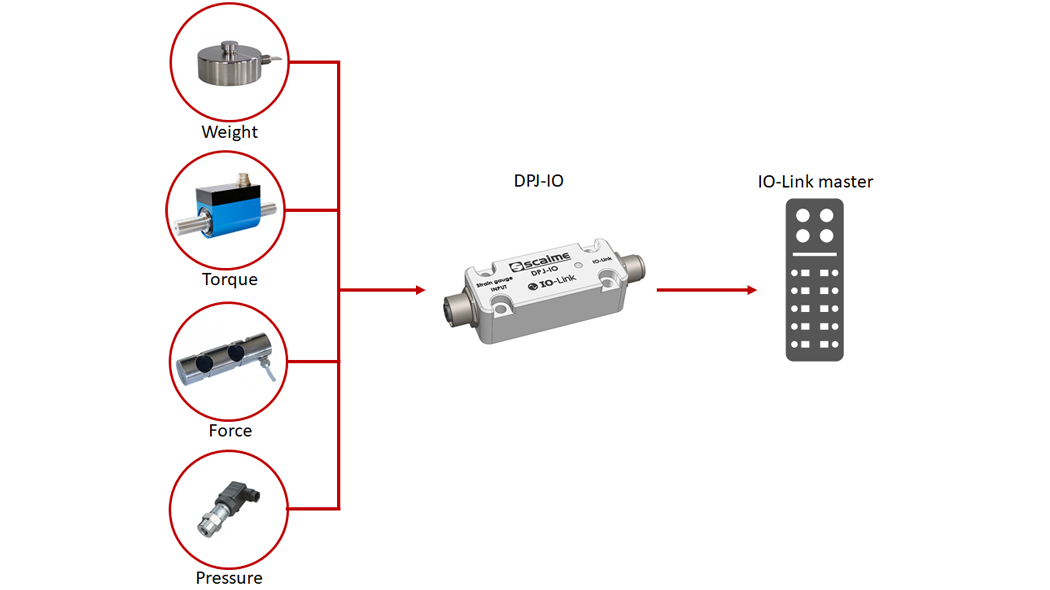

Compatible with your existing strain gauge bridge sensors, this solution allows you to modernize them without replacement, or equip new applications for optimal integration.

Weighing tanks or silos

Press testing

Signal processing

Torque

Manual press

Main Features

IO-Link 1.1 for reliable digital communication
Maximum flexibility: compatible with 4-wire or 6-wire sensors, up to 4 sensors on the same measurement chain
0.01% full-scale accuracy with a linearity error of only 0.005%
Fast communication : communication speed up to 230.4 kBaud (COM 3 mode) with a 1 ms cycle time
Industrial robustness: IP67 aluminum housing for optimum protection
Easy integration: remote configuration, access to diagnostic data, and native integration
Stable signal up to 100 m distance
4800 Hz sampling rate
Advanced functions: zero, min/max, capacity, sensitivity, diagnostics
Advanced processing: digital filtering (Bessel, Butterworth, exponential moving average)

IO-Link : Smart connectivity for your sensors

IO-Link is a standardized industrial communication protocol enabling data exchange between sensors, actuators, and automation systems. In addition to measurement data, it transmits diagnostic, status, and configuration information, simplifying equipment commissioning and maintenance.

With its IO-Link solutions, Scaime enables easy integration of force, torque, displacement sensors, and weighing systems into modern industrial architectures. Measurement data is transmitted reliably and digitally, ensuring better utilization of field information and simplified integration into Industry 4.0 environments.
