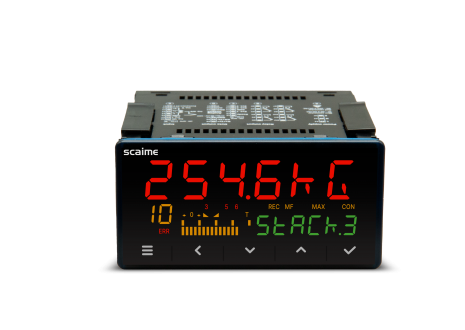

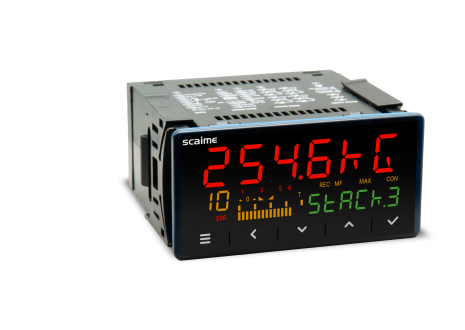

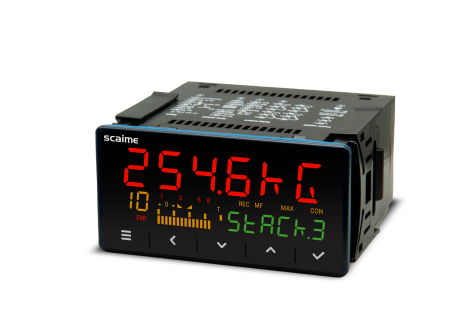

IM2-S

Its dual LED display, integrated bargraph, and intuitive navigation simplify measurement reading and instrument configuration. Thanks to its advanced signal processing functions, the IM2-S provides a complete solution for acquiring, displaying, and transmitting measurements from strain gauge sensors.

Key Features

• 6-digit LED display with secondary display and integrated bargraph
• Compatible with 4-wire or 6-wire strain gauge sensors
• Input ranges: 1...2 / 2...4 / 4...8 / 8...16 mV/V
• Accuracy up to 0.02% of full scale
• Sampling rate up to 1200 measurements per second
• Advanced weighing function with tare and automatic zeroing
• Programmable digital filters for stable and reliable measurements
• Teach-In function for simplified calibration
• Multi-point linearization
• Integrated mathematical functions
• DIN 96 × 48 mm format
• Universal power supply 10...30 V AC/DC or 80...250 V AC/DC

Integrated Function : the IM2-S includes numerous functions designed to simplify the integration and operation of measurement systems:

• Tare and automatic zero
• Min./Max. value storage
• Peak detection and display
• Offset compensation
• Configurable digital filtering
• Linearization up to 100 points
• Signal simulation for testing
• Event and error logging
• Real-time clock and time-based function management
• Internal measurement data recording

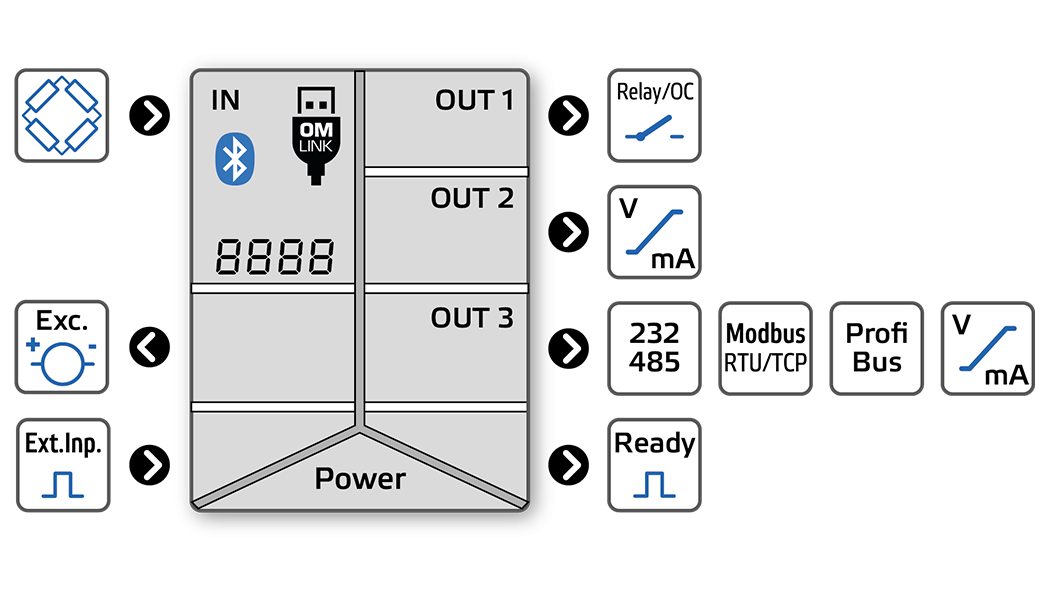

To meet industrial application requirements, the device can be equipped with various options.

Logic Inputs

• 3 isolated PNP/NPN inputs or dry contact inputs
• Configurable functions: tare, zero reset, hold, recording, keypad lock, etc.

Control Outputs

• Relays
• Open collector outputs
• Programmable comparators with hysteresis and delay functions

Analog Outputs

• 0...2 V
• 0...5 V
• 0...10 V
• ±10 V
• 0...5 mA
• 0...20 mA
• 4...20 mA

Communications

• ASCII
• Modbus RTU
• Modbus TCP/IP
