Multi-Channel TouchScreen for eNod4

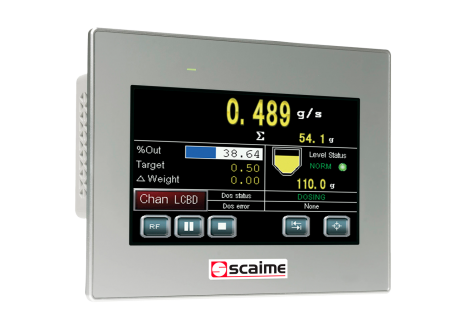

eNodTouch-MW

HMI for 1 to 6 eNod4

Multi-channel Touch screen for eNod4-T/C/D/B/F controllers
Color LCD screen, resistive Touch panel
Display 7", 154x86mm
Manage and display of 1 to 6 eNod4 network
Simultaneous display of connected eNod4
Display of measurement and result values of one selected eNod
Full control of applications
Complete eNod4 configuration and calibration
Simultaneous operation with eNod4 PLC link
RS485 communication port, MODBUS-RTU

Slide Show eNod4

Signal processing

Management and display up to 6 eNod4 network

3D visualisation

Download the CAD models

Downloads

Data sheets

Touch Panel - Multiple channel, Color - eNodTouch-MW
FT-ENODTOUCH-MW-FE-0525.pdf

Langues : FR, EN

User Manuals

User Manual - eNodTouch-ML & eNodTouch-MS
NU-eNodTouch-MW-ML-MS-E_196774-L

Langues : EN

Applications leaflet

Plant engineering, machine control
FA-PROCESS_WEIGHING-E-1123.pdf

Langues : EN

Product range leaflets

Load cells, Mounting kits, Electronics
MT-WEIGHING-E-0925.pdf

Langues : EN

Technical notes

Wiring a RS-485 network
NT-RS485_E_0915.pdf

Langues : EN

Procedure for eNodTouch software update
NT-eNodtouch_Update_E_0119.pdf

Langues : EN

Products slide shows

eNod4 weighing controllers for automated processes
PP-eNod4 Range-E-0418.pdf

Langues : EN

Software release note

Release note of eNodTouch-MS-ML-WL software for versions up to V2.12
FiReNo_eNodTouch-MS_-ML_-WL-EN_V2.12_20241220.pdf

Langues : EN

Accessories

eNod4-T DIN

Weighing transmitter

eNod4-C DIN

Checkweighing, Grading controller

eNod4-D DIN

Filling, Dosing controller

eNod4-B DIN

Continuous weighing, Belt scales, Belt weigh feeders

eNod4-F DIN

Continuous weighing, Loss-in-weight feeders
