capteur de couple rotatif digital

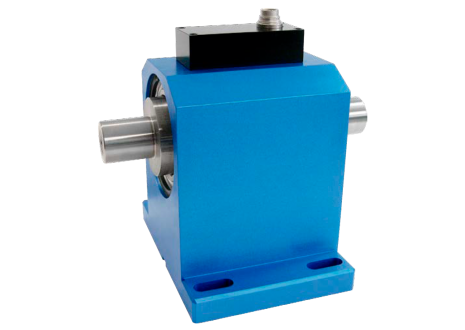

Rotating torquemeter, contactless, 0.1%

DR2212

0.03 Nm... 20 000 Nm
  • Rotating torque sensor
  • Contactless digital signal transmission
  • Maintenance free
  • Shaft without keyway
  • High refresh rate (10 kHz)
  • Output signal ±5 V (or ±10V) or serial (RS485)
  • High accuracy : 0.1%
  • Angle/speed output (option)

Torque

3D visualisation

To view this content, you must enable google maps cookies

Download the CAD models

Downloads

Data sheets
Coupling series for torquemeters - Serie 951
FT-COUPLING_SERIE-951-FE-0124.pdf
Langues : FR, EN
Coupling series for torquemeters - Serie 969
FT-COUPLING_SERIE-969-FE-0124.pdf
Langues : FR, EN
Torque Sensor - Rotating brushless - DR2112-DR2112L
FT-DR2112-DR2112L-FE-1016.pdf
Langues : FR, EN
Product range leaflets
Torque Measurement
MT-TORQUE-E-0223.pdf
Langues : EN
User Manuals
User manual for torque sensor contactless
NU-DR2112-2212-E-0614.pdf
Langues : EN

Accessories

DR2212+acc

Coupling serie 969
For torquemeter D2452, DH15, DR2212, DR2477, DR2643
DR2212+acc

Coupling serie 951

For torquemeter DR2212-L, DR2477, DR2643
