capteur de couple rotatif digital

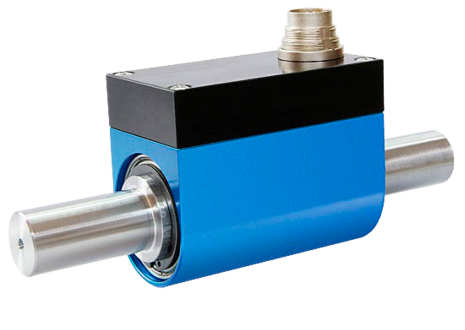

Rotating torquemeter, 2 outputs, contactless

DR2208

0.5 Nm ... 5 000 Nm
  • Rotating torque sensor
  • 2 ranges in 1 sensor, this 2 ranges authorize a highly accurate over a wide measuring range
  • example : 1 output for 0 / 50 Nm and the second for 0 / 500 Nm
  • Contactless digital signal transmission
  • Maintenance free
  • Shaft without keyway
  • High refresh rate (10 KHz)
  • Output signal (±5 V) or serial (RS485)
  • High accuracy : 0.1%
  • Angle/speed output (option)

Torque

3D visualisation

To view this content, you must enable google maps cookies

Download the CAD models

Downloads

Data sheets
Coupling series for torquemeters - Serie 950
FT-COUPLING_SERIE-950-FE-0124.pdf
Langues : FR, EN
Coupling series for torquemeters - Serie 966
FT-COUPLING_SERIE-966-FE-0124.pdf
Langues : FR, EN
Torque sensor - Rotating brushless - DR2208
FT-DR2208-FE-0616.pdf
Langues : FR, EN
Product range leaflets
Torque Measurement
MT-TORQUE-E-0223.pdf
Langues : EN

Accessories

DR2112+acc

Coupling serie 950

For torquemeter > 30Nm

DR2112+acc

Coupling serie 966
For torquemeter D2452, DR20, DR2513, DR2112-L, DR2208, DR2477, DR2500, DR2643
