capteur de couple rotatif

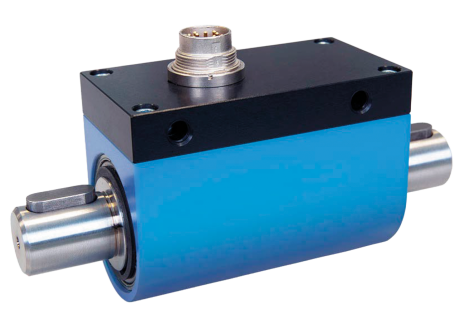

Rotating torquemeter, angle/speed output

DR20

1 ... 500 Nm
  • Rotating torque sensor
  • Both shaft ends with keyway
  • Integrated angle/speed output (pulses outpout)
  • High accuracy 0.1%
  • Torquemeter with slipring and low level output (mV/V)

3D visualisation

To view this content, you must enable traceparts cookies
Enable traceparts cookies

Downloads

Data sheets
Coupling series for torquemeters - Serie 950
FT-COUPLING_SERIE-950-FE-1018.pdf
Langues : FR, EN
Coupling series for torquemeters - Serie 966
FT-COUPLING_SERIE-966-FE-0916.pdf
Langues : FR, EN
Torque Sensor - Rotating - DR20
FT-DR20-FE-0616.pdf
Langues : FR, EN
Product range leaflets
Torque Measurement
MT-TORQUE-E-1019.pdf
Langues : EN
User Manuals
User manual for DR1/DR2/DR12/DR20
NU-DR1-DR2-DR12-DR20-E-0614.pdf
Langues : EN

Accessories

DR2112+acc

Coupling 950P

For torquemeter > 30Nm

DR2112+acc

Coupling 966P

For torquemeter DR2, DR20, DR2269, DR2513
