capteur de couple rotatif

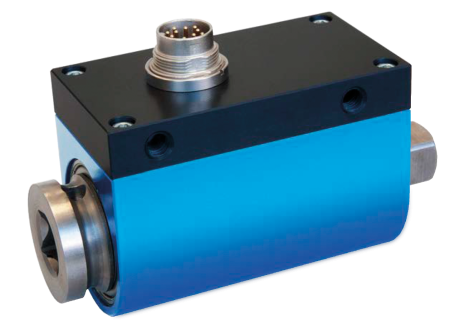

Rotating torquemeter, square end connection, angle/speed output

DR12

1 ... 5 000 Nm

Rotating torque sensorr
Both side with square end
Integrated angle/speed output (pulses outpout)
Torque measurement system without screwing shock
High accuracy : 0.1%
Torquemeter with slipring and low level output (mV/V)

Torque

3D visualisation

To view this content, you must enable traceparts cookies

Enable traceparts cookies

Download the CAD models

Downloads

Data sheets

Torque sensor - Rotating - DR12
FT-DR12-FE-0316.pdf

Langues : FR, EN

Product range leaflets

Torque Measurement
MT-TORQUE-E-1019.pdf

Langues : EN

User Manuals

User manual for DR1/DR2/DR12/DR20
NU-DR1-DR2-DR12-DR20-E-0614.pdf

Langues : EN
