capteur de couple

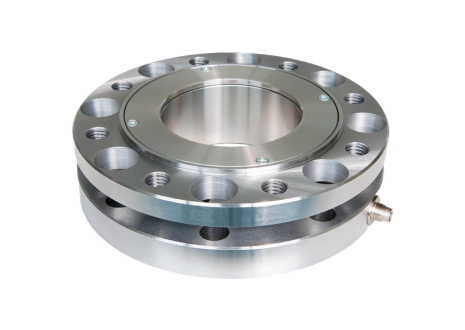

Torquemeter, flange connection, extra flat

D2268

50 Nm ... 10 000 Nm
  • Torque sensor
  • Connection by flanges
  • High accuracy 0.1 %  (option 0.05 % )
  • Extra flat dimensions
  • Electric connection by connector

Torque

3D visualisation

To view this content, you must enable traceparts cookies
Enable traceparts cookies
Download the CAD models

Downloads

Data sheets
Torque Sensor - Non rotating - D2268
FT-D2268-FE-0318.pdf
Langues : FR, EN
Product range leaflets
Torque Measurement
MT-TORQUE-E-1019.pdf
Langues : EN
User Manuals
User Manual for Non Rotating Torque Sensors
NU-DF30-DF2553-DV14-DWF-DH15-D2268-E-0614.pdf
Langues : EN
