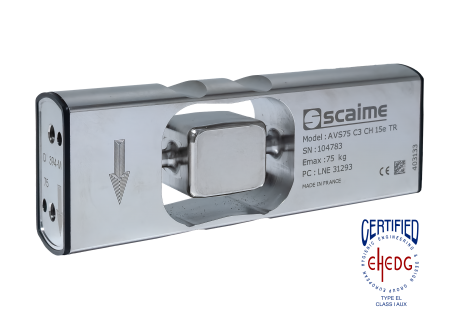

Hygienic single point load cell, 15 kg ... 75 kg

AVS

15 kg ... 75 kg
  • Load cell made of stainless steel, hermetically welded IP69K
  • Hygienic design, certified EHEDG
  • Suitable for use in washdown application
  • Approval up to 3 000 d OIML R60 for use in legal for trade weighing applications
  • Maximum platform size 500x400 mm or 600x400 mm (75kg)
  • Output with cable or M12 connector
  • Idealy suited in weighing scales, checweighers and dosing or filling machines construction

  • Capacities: 15, 30, 75 kg

AVX and AVS: Choice of connection, enhanced maintainability

To improve maintainability and reduce machinery stoppage times, AVX and AVS sensors offer a choice of connection:

  • A standard, economical output via 3m cable, maintained by a stainless-steel cable gland ensuring perfect sensor watertightness.
  • An output via stainless-steel M12 connector
connecteur-AVS-web

AVS: guaranteed reliability for filling machines

To increase productivity by improving its reliability, the AVS sensor has been approved for continuous use in particularly moist and hostile environments.

The AVS sensor therefore meets IP68/IP69K protection standards, and has undergone approval tests conducted by an independent laboratory.

Furthermore, the AVS sensor, comprising a particularly sturdy parallelepiped, offers excellent protection against lateral stress or torsion. In particular, this kind of stress can occur accidentally as the result of an incident while conveying the container to the filling machine.

IP69K-web

AVS: guaranteed food safety

The hygienic design of the AVS is certified by the EHEDG (European Hygienic Engineering and Design Group), an association devoted to the advancement of hygienic design in food industry equipment.

This design ensures its cleanability: Its construction without any horizontal flat surfaces or sharp corners ensures that the Clean in Place (CIP) or Sterilisation in Place (SIP) process will eliminate all contamination by microorganisms.

The two special watertight seals made from FKM Viton® are part of the EHEDG certification and come as standard with the AVS sensor.

joints-AVS-web

3D visualisation

To view this content, you must enable traceparts cookies
Enable traceparts cookies

Downloads

Data sheets
Load cell - Single point - AVS
FT-AVS-FE-0919.pdf
Langues : FR, EN
AVX/DVX/AAD/R10X load cell connection
FT-CABLE M12-FE-0618.pdf
Langues : FR, EN
Applications leaflet
Grading, Check-weighing
FA-CHECKWEIGHING-E-0221.pdf
Langues : EN
Filling, Batching control
FA-FILLING_DOSING-E-0120.pdf
Langues : EN
Plant engineering, machine control
FA-PROCESS_WEIGHING-E-0222.pdf
Langues : EN
Product range leaflets
Load cells, Mounting kits, Electronics
MT-WEIGHING-E-0221.pdf
Langues : EN
Technical notes
Using load cells - Technology, Operating principle, Implementation
NT-USING LOAD CELLS-E-0122.pdf
Langues : EN
