capteur de couple rotatif

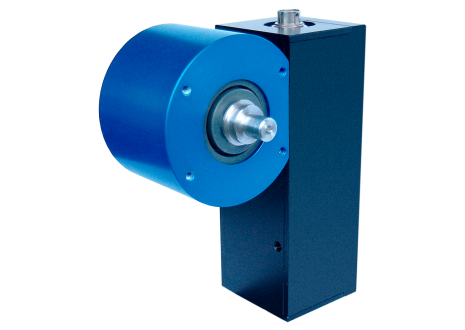

Rotating torquemeter contactless, speed < 30 000tr/mn

DR2500

0.005 Nm ... 150 Nm
  • Rotating torque sensor
  • High speed up to 30 000 tr/mn (without bearings)
  • Available for very low torque
  • Shatf without keyway
  • Contactless digital signal transmission
  • Maintenance free
  • High refresh rate (10 kHz)
  • high accuracy : 0.1%
  • Output signal  ±5 V (or ±10 V)
  • Speed output : pulses (option)

3D visualisation

To view this content, you must enable google maps cookies

Downloads

Data sheets
Coupling series for torquemeters - Serie 950
FT-COUPLING_SERIE-950-FE-0124.pdf
Langues : FR, EN
Coupling series for torquemeters - Serie 966
FT-COUPLING_SERIE-966-FE-0124.pdf
Langues : FR, EN
Rotatif Torque Sensor - DR2500
FT-DR2500-FE-1016.pdf
Langues : FR, EN
Product range leaflets
Torque Measurement
MT-TORQUE-E-0223.pdf
Langues : EN
User Manuals
User Manual for DR2500
NU-DR2500-E-0614.pdf
Langues : EN

Accessories

DR2112+acc

Coupling serie 950

For torquemeter > 30Nm

DR2112+acc

Coupling serie 966

For torquemeter D2452, DR20, DR2513, DR2112-L, DR2208, DR2477, DR2500, DR2643
